Vessel designs

Adaptations

Within the design concept, adaptation to an appropriate capacity is easy made.

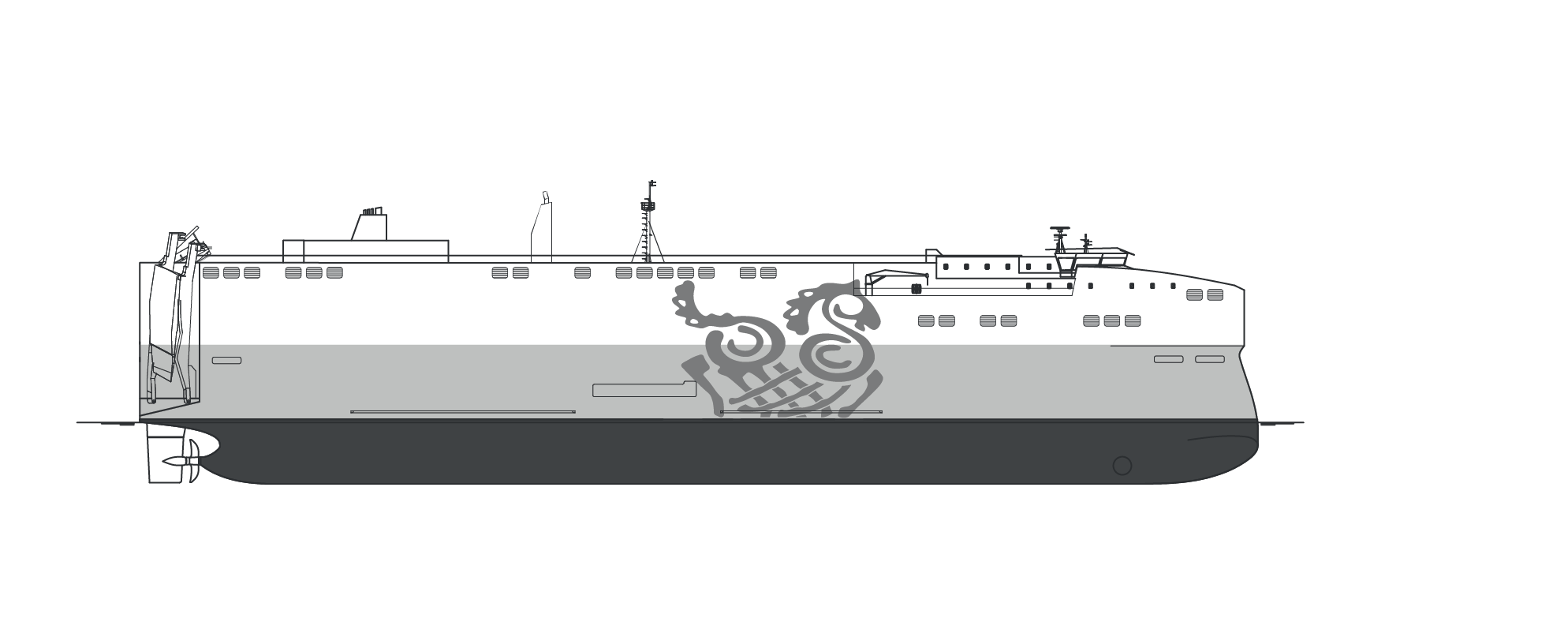

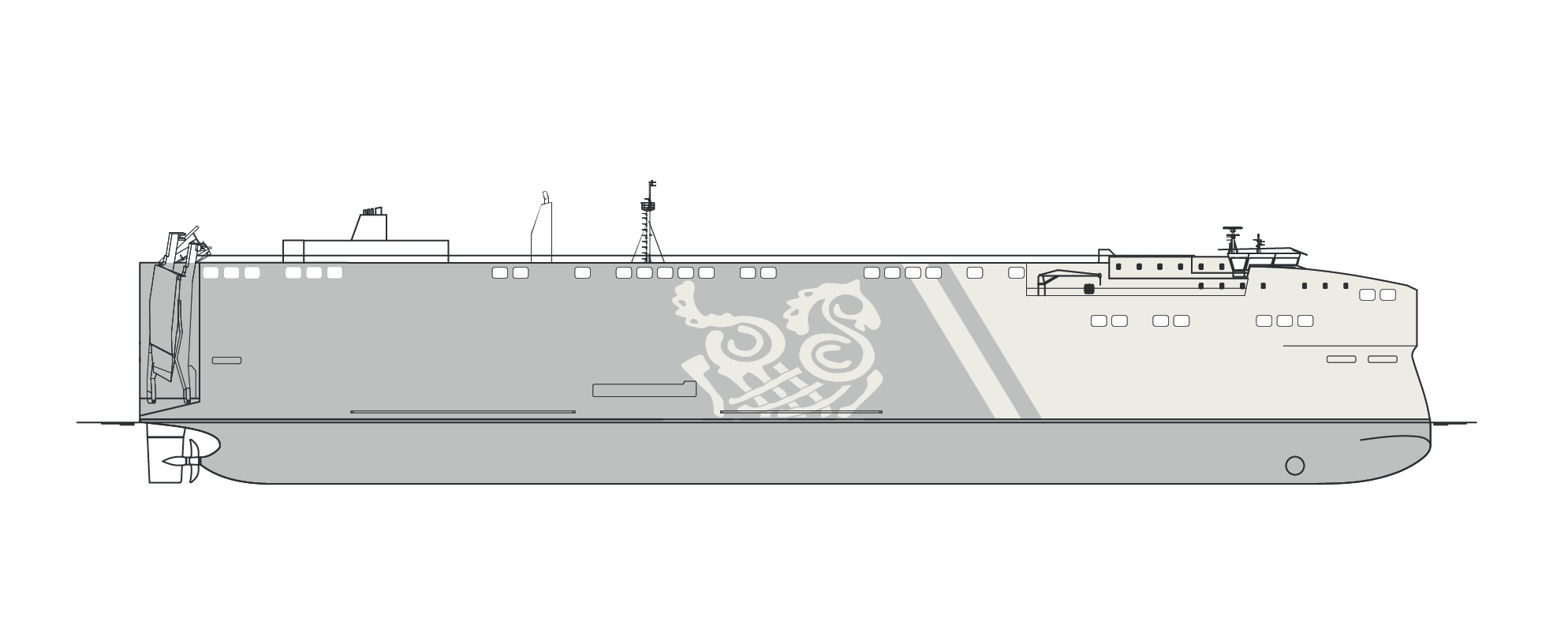

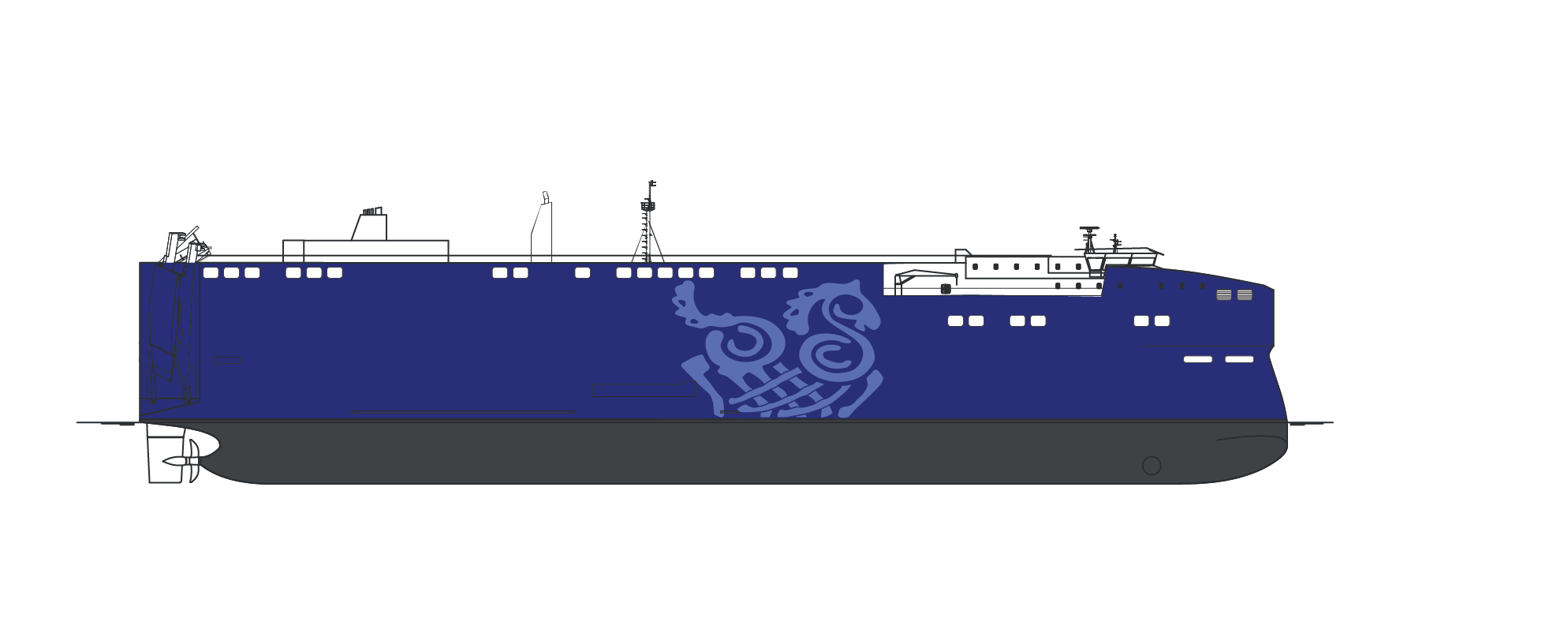

Here are four variants within the Sleipner concept:

4,100 CEU DF PCTC

GENERAL PARTICULARS

Length over all                           abt. 170.00 m

Lenght perpendicular                       160.00 m

Breath moulded                                   33.00 m

T max                                                        7.40 m

T design                                                    6.80 m

Deadweight, max                           abt. 9,500 t

Speed ECO/Design                 15 knot/19 knot

5,500 CEU DF PCTC

GENERAL PARTICULARS

Length over all                           abt. 180.00 m

Lenght perpendicular                       175.40 m

Breath moulded                                   36.00 m

T max                                                        9.50 m

T design                                                    8.35 m

Deadweight, max                          abt. 12,500 t

Speed ECO/Design                 15 knot/18 knot

6,500 CEU DF PCTC

GENERAL PARTICULARS

Length over all                           abt. 200.00 m

Lenght perpendicular                       195.40 m

Breath moulded                                   37.00 m

T max                                                        9.50 m

T design                                                    8.35 m

Deadweight, max                          abt. 16,000 t

Speed ECO/Design                 15 knot/19 knot

8,800 CEU DF PCTC

GENERAL PARTICULARS

Length over all                           abt. 228.00 m

Lenght perpendicular                       224.50 m

Breath moulded                                   38.00 m

T max                                                      10.20 m

T design                                                    9.30 m

Deadweight, max                         abt. 20,500 t

Speed ECO/Design                 15 knot/19 knot

Learn more

If you want to know more about the Sleipner concept and its possibilities, please contact us
